Panel mount or PC board mounting are available. These products are of the highest quality and offer our customers an outstanding value. Click on a product below to discover how our solutions can seamlessly conform to your applications requirements.

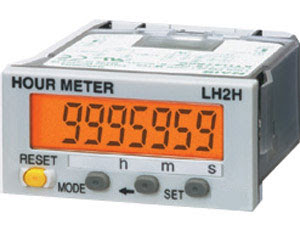

===================================================================================== LH2H Series
Key features- Preset function equipped in half size (24x48 mm).
- Display has backlight for instant recognition.
- 8.7 mm Character Height (previously 7 mm) Easy-to read character height increased from 7 mm to 8.7 mm.
- Plenty of Digits - up to 7.
- Select by switch between two time ranges in a single meter. 0 to 999999.9h/0 to 3999d23.9h Selectable 0 to 999h59m59s/0 to 9999h59.9m Selectable
- Conforms to IP66 Protective Construction (Front panel surface) Weatherproofing supported by using optional mounting bracket and rubber gasket
- Includes reassuring lock mode and lock switch to prevent erroneous operation.
- Screw terminals are constructed to protect fingers to ensure safety.
- Compliant with UL, c-UL and CE marking.
Supports several operation modes
> G (TOTALIZING ON delay)
> B(Signal On Delay)
> F(signal flicker)
> E(pulse On delay)
===================================================================================== TH (Panasonic) Series
TH 13/23 Analog Hour Meter
Key features
- High-performance compact synchronous motor The accurately turning motor is employed to provide for longer period of measurement.
- Common for 50/60 Hz power frequency A lever is used to select 50 Hz or 60 Hz. There is no need to rearrange the control panel and other signal destinations.
- Dimensions as per DIN 43700 standard The units are in the 48 × 48 DIN standard size. They can be fitted in panels and give refined metallic appearance.
- Easier wiring The flat terminals (#187) are quick and easy to connect.
- Rotary indicator The rotary indicator makes one turn every 2 minutes for monitoring.
- Compliant with UL, CSA and CE.
Typical applications
Maintenance management of machine tools, automated machines, control panels, forming machines, medical equipment, generators, compressors, water treatment facilities, presses, motors, etc. COUNTING RANGE 0 TO 99999.9 hours (TH13 series) 0 TO 9999.9 hours (TH23 series)
TH 14/24 Analor Hour Meter
Key features
- High-performance compact synchronous motor The accurately turning motor is employed to provide for longer period of measurement.
- Compact and stylish
- Easier wiring The flat terminals (#187) are quick and easy to connect.
- Rotary indicator The rotary indicator makes one turn every 2 minutes for monitoring.
- Compliant with UL, CSA and CE.
Typical applications
Maintenance management of machine tools, automated machines, control panels, forming machines, medical equipment, generators, compressors, water treatment facilities, presses, motors, etc. COUNTING RANGE 0 TO 99999.9 hours (TH14 series) 0 TO 9999.9 hours (TH24 series)
