PLC


Programmable Logic Controllers

Our versatile programmable logic controllers offer the power, speed, and flexibility you need.Our FP0 is one of the smallest programmable logic controllers on the market. The power of our compact FPX is complimented by a new, low price! Our FP Sigma is capable of real-world motion and temperature control....

=====================================================================================

FP0 Series
Ultra Small / Ultra Slim PLC
Panasonic Electric Works established a new world standard "SLIM" PLC. Starting from 10 I/O to 32 I/O, the CPU is only 25(w) x 90(h) x 70(d)mm. This is about 1/4 the size of the traditional bulky PLC style called "Brick". The FP0 saves precious panel space and money. Relay output types have removable screw terminal blocks. The power supply connector is also quick to disconnect. Easy installation... especially when duplicating many systems.

REAL temperature control
Up to 16 loops of PID and auto tuning are built into this "SLIM" PLC. The FP0 uses floating point math for its PID calculation which is more accurate than an integer PID. With the new thermocouple input units, the FP0 can easily and accurately control temperature while controlling I/O. The PID values can be easy calculated with the built-in auto tuning feature. Up to 16 Auto Tuning loops can run simultaneously. The I-PD algorithm is also available to offer smoother control for sensitive applications.

Expandable

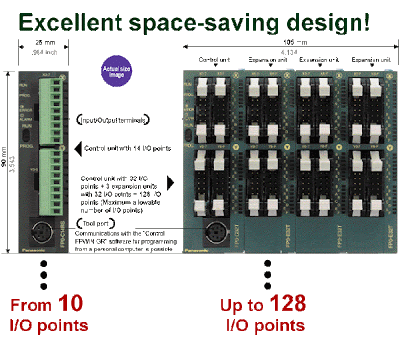

The FP0 is still expandable up to 3 expansion unit right side of the CPU. It is also possible to mix and match with relay, transistor and analog. The FP0 can communicate via Ethernet, Internet, Modem as well as RS232C/485. Or FP0 can send E-mail out with FPWebServer. You can also monitor and edit the program via Modem, Ethernet, RS485 and RS232C. The FP0 is still world smallest PLC but it got powerful feature and industrially built.

Two axes motion control
The FP0 has simultaneous 2 axis trapezoidal motion control. Programming is very simple. All you have to do is to set the low speed, high speed, acceleration time, target position and you are ready to do motion control. You can control up to 9.5KHz total.

Key features
> Web Server Available - The world's smallest PLC can be connected to the web!
> Floating Point Math(2)
> 2 Serial Ports(3)
> Calendar Timer Clock (4)
> Fast PWM Output(2)
> ULTRA Small - 1/4 the size of traditional brick PLCs
> 2 Axis Motion Control - Trapezoidal motion control
> PID with Auto Tuning (2)
> 4 High Speed Counters
> 1ms Resolution Timers
> Removable Terminals (1)
> Run-Time Editing

=====================================================================================

FPX Series

Powerful, compact PLC with the processing power and expandability of larger PLCs

High Performance, Multiple Functions, and Strengthened Lineup to Support a Wider Variety of Applications
The FP-X PLC comes with a wide range of features suitable for most applications and is designed to save development cost. Ultra high processing speed of 0.32 μsec per instruction (executes a 5 Kstep program in 1.9 msec). Large program capacity of 16, or 32 Kstep exceeds the capacity of most compact PLCs. Expandable up to 382 I/O points, low cost coordinated motion, analog, and communication cassette options are also available

Excels with networking capabilities
Excellent for communication applications with the ability to network 16 FP-X (master to master network), or 99 FP-X (master to slave network). Modbus RTU master and slave supported (will support up to 63 slave per master). Built-in 8 channels of high speed counters with speeds up to 10 KHz per channel (optional high speed counters also available with speeds up to 80 KHz). USB connection, built-in power supply, removable screw terminals are only a few of the well thought out features of the FP-X PLC.

The transistor type FP-X comes with up to 4 axis of built-in pulse outputs (AFPX-C14 supports 3 axis). Each motion axis can operate independently or as 2 pairs of linear interpolation. The transistor outputs are designed for rugged operation with up to 0.5 Amp load simultaneously on all outputs. The relay type FP-X is also capable of motion by using an optional pulse cassette.

Key features

> High-speed Operation
The 32-bit RISC processor provides the top-level processing speed in compact PLCs. The scan time is 2 ms or less for 5,000 steps. A high-speed PLC is indispensable for enhancing the functionality of equipment.

> Large Capacity Program Memory
FP-X, which is equipped with 32k steps*2 program memory, is ideal for fully covering the increasing functions, such as communications, positioning, and analog control. The sufficient program capacity can also support future equipment modifications.

> Independent Comment Memory
There are difficulties with program management on a PC, such as identifying the latest program. The use of the program in the PLC of equipment in operation is often regarded as the best option. Since FP-X has an independent comment memory, all comments can be stored in the PLC together with programs, facilitating program management and maintenance.

> Maximum Number of I/O Points
Since up to eight expansion units can be connected to one control unit, the maximum number of I/O points is 300. Furthermore, with the add-on cassette and expansion FP0 adapter connected, the number of I/O points can be increased to 382.

> Built-in 4-axis Pulse Output (Transistor Output Type
The transistor output type C14 comes with 3-axis while C30/60 comes with 4-axis pulse output built-in the control unit. The multi-axis control, which previously required a higher-level PLC or additional positioning unit, or two or more PLC units, can now be achieved with only one FP-X transistor output type unit in a small space at a low cost. In addition, as this type does not require a pulse I/O cassette needed for a relay output type, other function expansion cassettes such as communication or analog input can be attached for more diversified applications.

> Modbus-RTU
Communicates with equipment compatible with Modbus-RTU

> Expansion Cassettes
Expansion cassettes are available for Extra digital I/O, analog, motion, Ethernet, Serial communication, etc.




=====================================================================================
FPΣ Series

Ultra-Slim PLC - FP Sigma

Next-generation compact PLC. Medium-scale functionality provided in nano size
More advanced and complex control is required of PLCs in accordance with equipment functionality enhancements. The FPΣ is compact in size but equipped with a RISC processor that processes basic instruction at speeds of 0.32 usec/ instruction. Some of the features that results are super fast floating point calculation, built-in two axis of motion with linear/circular interpolation (expandable to 10 axes), easy PID instruction that supports up to 24 loops, 4 channels of built-in high speed counters, etc.

The FPΣ can support up to 3 serial ports configurable for Modbus RTU, PLC to PLC networking, Mewtocol, and General Purpose (custom communication protocol). The FPΣ has a programming capacity of 32 k steps, and supports up to 384 I/O points.

Key features
> Supports high-speed, positioning!
Comes standard with pulse output function of maximum 100 kHz.Linear and circular interpolation 2 Axis motion control.

> Program capacity of 32K steps

> RISC processor with 0.32 micro second processing speed per instruction

> 4 different communication cassettes. You can add up to two more ports without increasing the size of the CPU unit.

> Contains convenient instructions and functions for temperature control. A control unit that supports thermistor input is also available.

> High-level Temperature Control at Low Cost Two built-in thermistors input channels provide high-level temperature control. Thermistors can be connected directly, eliminating the need for an additional unit. The FPΣ can control heaters via PWM outputs controlled by the built-in PID/Auto-Tuning.

> Modbus RTU Master/Slave communication

> 50 Micro second interrupt throughput

> Up to 3 serial ports operating at speeds up to 115.2K baud rate.

Read More......

Tuesday, May 26, 2009

COUNTERS


Panasonic offers a versatile line of counters and hour meters to meet just about any application need.
Panel mount or PC board mounting are available. These products are of the highest quality and offer our customers an outstanding value. Click on a product below to discover how our solutions can seamlessly conform to your applications requirements.

===================================================================================== LC4H Series


LC4H Din 48 size LCD Digital counter

Key features
> Bright and Easy-to-Read Display A brand new bright 2-color backlight LCD display. The easy-to-read screen in any location makes checking and setting procedures a cinch.
> Simple Operation Seesaw buttons make operating the unit even easier than before.
> Short Body of only 64.5 mm (screw type) or 70.1 mm (pin type) With a short body, it easily installs in even narrow control panels.
> Conforms to IP66’s Weather Resistant Standards The water-proof panel keeps out water and dirt for reliable operation even in poor environments.
> Screw terminal and Pin Type are Both Standard Options The two terminal types are standard options to support either front panel installation or embedded installation.
> Changeable Panel Cover Also offers a black panel cover to meet your design considerations.
> 4-digit or 6-digit display Two sizes of displays are offered for you to choose the one that suits your needs.
> Compliant with UL, c-UL and CE.

The LC4H AND LC4HL series come in 4 and 6 digit displays with 7 output modes. Has Relay and Transistor output type.





LC4H-L Din 48 size LCD digital counter
Key features
> Low Price All this at an affordable price to provide you with unmatched cost performance.
> Display is a bright reflective-type LCD.
> Inherits all of the characteristics of the LC4H digital timer.
> Seesaw switches ensure easy operation.
> IP66 environmental protection.
> Shortened body (pin type: 70.1 mm 2.760 inch, screw type: 64.5 mm 2.539 inch underhead).
> Compliant with UL, c-UL and CE.




LC4H-S digital counter (with pre-scaling function)

Key features
> Bright and Easy-to-Read Display A brand new bright 2-color backlight LCD display. The easy-to-read screen in any location makes checking and setting procedures a cinch.
> Easy to use, simple operation, simple settings• Operation modes (input/output modes) can be set easily, using DIP switches on the side panel. • Values can be set easily, using key switches on the front panel.
> Pre-scaling function provided A pre-scaling function enables conversion of lengths and volumes to any desired values, and displays the results.
> Built-in power supply for highcapacitance sensor An internal power supply drives a 12 VDC, 100 mA high-capacitance sensor. (AC power supply types only) Photoelectric switches, proximity switches and encoders can be directly connected.
> Dual-path AC sensor can be connected.
> Basic insulation between the power supply and the input terminal (only for the sensor type model with power supply) There is no need for caution when connecting between terminals.
> Conforms to IP66’s Weather Resistant Standards The water-proof panel keeps out water and dirt for reliable operation even in poor environments.
> 4-digit or 6-digit display Two sizes of displays are offered for you to choose the one that suits your needs.
> Screw terminal and Pin Type are Both Standard Options The two terminal types are standard options to support either front panel installation or embedded installation.
> Compliant with UL, c-UL and CE.
> Low Price All this at an affordable price to provide you with unmatched cost performance.



LC4H-W Din 48 size LCD digital counter
Key features> Two-stage presetting (upper and lower limits)
> Bright and Easy-to-Read Display A brand new bright 2-color backlight LCD display. The easy-to-read screen in any location makes checking and setting procedures a cinch.
> Simple Operation Seesaw buttons make operating the unit even easier than before.
> Short Body of only 64.5 mm (screw type) or 70.1 mm (pin type) With a short body, it easily installs in even narrow control panels.
> Conforms to IP66’s Weather Resistant Standards The water-proof panel keeps out water and dirt for reliable operation even in poor environments.
> Screw terminal and Pin Type are Both Standard Options The two terminal types are standard options to support either front panel installation or embedded installation.
> Changeable Panel Cover Also offers a black panel cover to meet your design considerations.
> Compliant with UL, c-UL and CE.
> Low Price All this at an affordable price to provide you with unmatched cost performance.

Read More......

HOUR METERS


Panasonic offers a versatile line of counters and hour meters to meet just about any application need.
Panel mount or PC board mounting are available. These products are of the highest quality and offer our customers an outstanding value. Click on a product below to discover how our solutions can seamlessly conform to your applications requirements.


===================================================================================== LH2H Series
Key features
- Preset function equipped in half size (24x48 mm).
- Display has backlight for instant recognition.
- 8.7 mm Character Height (previously 7 mm) Easy-to read character height increased from 7 mm to 8.7 mm.
- Plenty of Digits - up to 7.
- Select by switch between two time ranges in a single meter. 0 to 999999.9h/0 to 3999d23.9h Selectable 0 to 999h59m59s/0 to 9999h59.9m Selectable
- Conforms to IP66 Protective Construction (Front panel surface) Weatherproofing supported by using optional mounting bracket and rubber gasket
- Includes reassuring lock mode and lock switch to prevent erroneous operation.
- Screw terminals are constructed to protect fingers to ensure safety.
- Compliant with UL, c-UL and CE marking.


Supports several operation modes
> G (TOTALIZING ON delay)
> B(Signal On Delay)
> F(signal flicker)
> E(pulse On delay)




















===================================================================================== TH (Panasonic) Series

TH 13/23 Analog Hour Meter

Key features
- High-performance compact synchronous motor The accurately turning motor is employed to provide for longer period of measurement.
- Common for 50/60 Hz power frequency A lever is used to select 50 Hz or 60 Hz. There is no need to rearrange the control panel and other signal destinations.
- Dimensions as per DIN 43700 standard The units are in the 48 × 48 DIN standard size. They can be fitted in panels and give refined metallic appearance.
- Easier wiring The flat terminals (#187) are quick and easy to connect.
- Rotary indicator The rotary indicator makes one turn every 2 minutes for monitoring.
- Compliant with UL, CSA and CE.

Typical applications
Maintenance management of machine tools, automated machines, control panels, forming machines, medical equipment, generators, compressors, water treatment facilities, presses, motors, etc. COUNTING RANGE 0 TO 99999.9 hours (TH13 series) 0 TO 9999.9 hours (TH23 series)


TH 14/24 Analor Hour Meter

Key features
- High-performance compact synchronous motor The accurately turning motor is employed to provide for longer period of measurement.
- Compact and stylish
- Easier wiring The flat terminals (#187) are quick and easy to connect.
- Rotary indicator The rotary indicator makes one turn every 2 minutes for monitoring.
- Compliant with UL, CSA and CE.

Typical applications
Maintenance management of machine tools, automated machines, control panels, forming machines, medical equipment, generators, compressors, water treatment facilities, presses, motors, etc. COUNTING RANGE 0 TO 99999.9 hours (TH14 series) 0 TO 9999.9 hours (TH24 series)

Read More......

Monday, May 25, 2009

LIMIT SWITCHES


Broad line of compact limit switches from heavy-duty foundry types to light-duty snap switches.
Rugged designs are vibration and shock resistant, and environmentally sealed for indoor, outdoor, and washdown service. These switches are available with a wide variety of lever and plunger actuators. Many models include an integral LED lamp to indicate the operating status of the switch.
===================================================================================== AZ5 Series




Key features
- Lamp Connection can be Spring Type or Lead Wire Type
- Lamps Useable with a Wide Range of Voltages
- Typical Applications - Conveyer equipment, conveyer belts, plant facilities, cranes, cleaning plants, etc.
- Can be Mounted on Front or Back
- IP67 Compliant - Corrosion-Proof, Oil Resistant Construction


===================================================================================== QL (AZ4) Series

Key features
- Same compact size as the VL mini limit switch A compact limit switch perfectly suited to this era of space-saving.
- Sturdy construction A sturdy construction comparable to any limit switch which uses a zinc die-cast body, a glass-weave Reinforced plastic head, and a cover. The terminal cover also boasts excellent dust-proof and drip-proof capabilities.
- Easy wiring Because this unit uses the same terminal screw wiring method as the VL mini limit switch, the wiring space is large and the wiring work easy.
- Highly accurate position detection Because hardly any pretravel (P.T.) is necessary, highly accurate position detection is possible.
- Detection of thin sheet materials is also possible Because the movement differential (M.D.) is zero, detection of thin sheet materials is also possible.
- Level control of conducting fluids is also possible Because contact detection is possible, the level of conducting fluids can also be controlled.
- High frequency detection possible Because the output is contactless, there is no chattering or bounce at all. This makes for fast response speed and high frequency detection, with long unit life.
- Comes with operation display lamp Any operation can be verified by means of the blinking light-emitting diode.
- Comes with sensitivity adjustment function The sensitivity can be set appropriate to the application by adjusting the touch sensitivity.


=====================================================================================
ML (AZ7) Series

Key features
- Long life High efficiency coil spring switching mechanism for long life: More than 107 mechanical operations.
- Great mechanical strength while being compact and lightweight The attachment pitch is 25.4mm (1.000inch), same as for the Z basic model microswitch. Also, the outer cover cap uses a strong plastic with excellent mechanical characteristics. An M4 bolt can be used for the attachment.
- The overtravel (O.T.) is large with great shock absorption
- The switch itself is constructed to be dust-proof and oil resistant The switch itself is closed flush with the diaphragm and the compressed rubber ring, so that the terminal mold type (epoxy-sealed terminal type) is perfectly flush with the terminal parts.


Typical applications
Used in sequence control of food processing machines, automatic packaging machines, conveyers, and processors. Ideal for light industry machinery when installation pace is limited and a protective construction is sought.


=====================================================================================
SL (AZ3) Series

Key features
- Subminiature limit switch Managed to miniaturize the comparative bulk with high density mountings in the equipment’s detector to approximately 1/3 of our own ML limit switches, or approximately 1/1.6 of the Z model microswitch.
- A lamp can be easily added for operations checks An exposed terminal type model combined with a socket with cord for the built-in LED lamp (sold separately) easily become a limit switch with lamp. Convenient for maintenance checks such as operations checks.
- Operates with a light force Comes in two types: O.F. is a maximum of 1.18N {120gf} (light force model) and light force commensurate to the microswitch.
- Terminal uses both solder and tab
- Achieves stroke tolerance (O.T./T.T.) of 0.67 Plenty of scope for position fixing with long life. Because of the optimum design of the built-in limit switch and the original Lmodel spring for use in O.T. absorption, the total travel range has been enlarged, and both position fixing and the unit’s lifespan have been improved a level. Stroke range: 3 times more than the ML limit
- Long life By combining the excellent reliability and solvent proofing of the FS-T microswitch with the L shape spring, we have achieved a unit with both long life and high reliability (electrical life: 105 mechanical life: 10^7
- Built-in safety features and excellent environment proofing The case uses 66 nylon glass fiber the doubly protect the switch. Also, the body and cap have been ultrasonically welded, creating a flush construction except for the terminals. Moreover, by adding a dedicated socket, the construction is drip-proof, dust-proof, and dirt-proof, creating a flush construction for the unit as a whole including the terminals. Rubber cover type: Equivalent to IP60 Socket with cord type: Equivalent to IP64

===================================================================================== VL (AZ8)Series

Key features
- Compact design approximately 1/3 of the AZ5 limit switches
- Au-clad contacts that can even use low level circuit and little chattering and bouncing The built-in switch has Au-clad contacts with excellent contact reliability and uses a crossbar contact method, and moreover, has a dual cutoff circuit (1 Form A 1 Form B contact) with little chattering and bouncing due to computer-operated analysis.
- Easy wiring with full-open terminals When the cover is removed, the terminals are open as far as the flank, so the necessity to insert your fingers into a case to complete the wiring has been removed. Moreover, the wiring space is large despite the compact size, and the terminals are spread in a tiered array, so that wiring work can be completed very easily. The cable can either be screwed in directly, or can use U-shaped and circular pressure terminals.
- Mounting are possible to both front and back
- Type with a lamp that can be used with a wide range of voltages • With neon lamp Compatible with: 100 and 200V AC ; Even at 100V AC, sufficient luminosity is achieved through the diamond-cut lens. Also with a long lifespan of more than 20 thousand hours. • With LED lamp Covers 6 to 48V DC and comes in three types, 6V DC , 12V DC , 24 to 48V DC. Uses two highly luminescent LEDs and in addition, sufficient luminosity is achieved through the diamond-cut lens.
- Lamp connection can be either spring type or lead wire type • Spring type (wiring unnecessary) (With neon or LED lamp type) Wiring is unnecessary because the lamp is directly connected to the terminals. By simply changing the direction of the lamp holder attachment, it is possible to display both lights during inoperability and during operation (however, if both N.O. and N.C. loads are connected, only the inoperability lamp can be displayed.)
- Construction permits lamp attachment method to be changed. • Lead wiring type (LED lamp type only) Because the wiring can be made parallel to the load, current leakage from the lamp can be reduced to 0. Even with a slight leak, the electronic circuit incurring the leak can be used safely.
- Dust-proof, waterproof, oil resistant construction The main unit and the cover are sealed with rubber packing, and the cord runner is doubly sealed by the cord vent. The actuator is sealed by both a rubber cap and an O ring in all models. Also, the lens and cover are formed simultaneously with the lamp type, and moreover, a nameplate is affixed to the upper surface, thereby improving the already excellent waterproof capabilities. (Note: Applications directly involving the cord entrance and the locations which are always wet and oily, or submersion in water or oil, cannot be used.)

Typical applications
Ideal for general plant facilities such as engineering machinery, conveyer machinery, and assembly lines LED lamp type is also compatible with low-voltage DC control circuits such as in PCs and computers.

=====================================================================================
HL (AZH) Series

Key features
- Broad lineup Lineup includes reduced-wiring connector type, die casting type with commonly used screw terminals, and a plastic case type that puts a priority on economy.
- Superior environmental resistance The die-cast type has high sealing characteristics that satisfy the IEC IP67.
Standardized connector type We standardized the reduced-wiring and easy-installation connector type. This increases worker efficiency when wiring, maintaining, and replacing.
- Lineup includes bifucated (twin contact) type as well as standard load type. The lineup includes a standard load type (5 A, 250 VAC) and a bifucated type (0.1 A, 30 VDC). The bifucated type uses gold-clad twin contacts, which makes it ideal for electronic circuit control.
- Economical plastic case type A plastic case IP64 economy type is included as well as the die-cast type. It is perfect for applications in which economy is the priority.
- UL/CSA certified.
- TÜV accredited products also available.


Typical applications
General plant facilities such as food processing, light machinery such as packaging machines, and assembly lines.


===================================================================================== VL-T Series

Key features
- Compact Same size as the VL mini limit switch: a compact limit switch perfectly suited to this era of space-saving.
- Sturdy construction A sturdy construction comparable to any limit switch which uses a zinc die-cast body, a glass-weave Reinforced plastic head, and a cover. The terminal cover also boasts excellent dust-proof and drip-proof capabilities.
- Easy wiring Because this unit uses the same terminal screw wiring method as the VL mini limit switch, the wiring space is large and the wiring work easy.
- Highly accurate position detection Because hardly any pretravel (P.T.) is necessary, highly accurate position detection is possible.
- Detection of thin sheet materials is also possible Because the movement differential (M.D.) is zero, detection of thin sheet materials is also possible.
- Level control of conducting fluids is also possible Because contact detection is possible, the level of conducting fluids can also be controlled.
- High frequency detection possible Because the output is contactless, there is no chattering or bounce at all. This makes for fast response speed and high frequency detection, with long unit life.
- Comes with operation display lamp Any operation can be verified by means of the blinking light-emitting diode.
- Comes with sensitivity adjustment function The sensitivity can be set appropriate to the application by adjusting the touch sensitivity.


=====================================================================================
DL (AZD1) Series

Key features
- Forced contact opening mechanism When the limit switch is ON, the contact is forced open by the N.C. contact through the cam movement.
- Conforms to EN standard (EN50047)
- Uses a unit system Any combination of actuator, head block, and unit block is possible. The units are also sold separately, making maintenance easy.
- Hinged cover for easy wiring
- Protective construction (IP67), and wide operating temperature range (–30°C to +80°C)

Read More......

TIMERS


Digital and analog timers well suited to a wide variety of machine and process control applications.
Our timers are available in single function-multirange, multifunction-single range, and multifunction-multirange configurations. Panasonic timer products are of the highest quality and offer an outstanding value!


===================================================================================== S1DXM Series

Key features
- Easy and Safe Handling
- Wide Time Range
- Indicator LEDs Provide Status at a Glance
- Flush Mountable with Accessories
- 12 Time Ranges Available
- S1DXM-M Multifunctional
- Useable with HJ Relay Terminal Socket
- Space-Saving Design - 22.1 x 51.7 x 29.5mm
- UL Recognized, CSA Approved

Miniature Multi-Range Timer
The S1DXM is a small, low-cost time delay relay available in Power On-Delay, Power Flicker, Power One-Shot, and Power One-Cycle configurations. Other features include flush mount capability, quickset dial, LED status indictators, and more!



===================================================================================== LT4H Series

Key features
- Screw Terminal and Pin Type are both Standard
- Changeable Panel Cover
- Conforms with EMC and Low Voltage Directives
- EE-PROM Power Failure Memory
- Bright and Easy to Read Display
- Simple Operation - Seesaw buttons make setting and operation easy
- Short Body of only 64.5 mm (2.54 in) or 70.1 mm (2.76 in)
- Conforms to IP66's Weather Resistance Standards

Market Leading Digital Timer

Compact, easy to read and use. A digital timer made to meet the market's needs! This top of the line multi-function, multi-range timer has 8 selectable operating modes. Available with pin or screw terminals, it has a 2-color backlit LCD display, waterproof front panel, four signal inputs, and relay or solid-state outputs.


===================================================================================== PM4H/4S Series
Key features
8 Different Operation Modes (PM4H-S)
Tube Base with Pin Style Terminals
Multiple Time Ranges - 1s to 500h (Max)
Short Body - 62.5mm (2.461 in) (Screw Terminal Type)
IP50/IP65 Rated - Front panel protected against water-splash and dust
100-240V AC Free-Voltage Input, 48-125V DC Type Available
Built-in Screw Terminals
Easy Wiring - Reduces additional costs
Changeable Panel Cover

Analog Timer
These analog dial set multi-function, multi-range timers cover 18 different operating modes, and include true power off-delay, star-delta, and cyclic twin timers. Available with pin or screw terminals, it has a washdown front panel, up to 3 signal inputs; and relay output.


===================================================================================== PM5S Series

Key features
- Slim Body - DIN 22.5 mm (.886 in)
- 0 Setting Instantaneous Output Operation
- UL/C-UL/CE Approval
- Multiple Time Ranges - 1s to 500h (max)
- IP40 Protection
- 24-240V AC/DC Free-Voltage Input
- Built-in Screw Terminals
- 6 Different Operation Modes (PM5S-A)
- High Shock Resistance
Multi-Range Analog Timer

===================================================================================== PMH Series
Key features
- Indicator LED Provided for Operation

- UL/CSA and LLOYD Recognized

- Four Time Ranges - Each with 4 Maximum Time Settings

- High Speed Subsecond Timing Available

- Compact Size - 56.7 x 36 x 50mm

Compact Size High Precision Power On-Delay Timers
The PMH is a dedicated Power On-Delay timer with a front panel dimension of 50mm high by 36mm wide. It has tubebase pin terminals, easy-set dial, and two 10-amp Form C relay output contacts.

Read More......

Saturday, May 23, 2009

TEMPERATUR CONTROLLERS


We offer a broad line of highly flexible temperature controllers with a wide selection of inputs and outputs.
They include: temperature controllers with PID (built-in auto-tuning function included), analog signal conditioners with scaling, and panel meters with a very bright and easy to read display. The KT line of controllers is well suited for a wide variety of machine and process control applications.

=====================================================================================

KT4H Series

Panasonic Electric Works Corporation of America offers a broad line of highly flexible controllers for use as temperature controllers with PID (built-in auto-tuning function included), analog signal conditioners with scaling and panel meters with a very bright and easy to read display. The KT line of controllers is well suited for a wide variety of machine and process control applications. Each controller offers a wide selection of inputs and outputs.

Key features
- Extremely Small Size (48 x 48 x 62mm) with High Performance
- RS485 ASCII/Modbus Communications Available
- Supply Voltage - 24V AC/DC or 100 to 240V AC
- CE, UL/CSA Approval
- Common Applications - Constant temperature bath, scrubber, shrink wrapping, oven, warm and cold storage units
- Multi-Input - Versatile thermocouple, RTD, DC Current, DC Voltage
- Control Modes - PID, on/off, Anti-Reset-Windup (ARW)
- Control Outputs - Relay, non-contact voltage output (for SSR drive, DC current output)
- Simple & Accurate - +/- 0.2% span
- Alarm Output - 9 different operation modes =====================================================================================
KT Series



Panasonic Electric Works Corporation of America offers a broad line of highly flexible controllers for use as temperature controllers with PID (built-in auto-tuning function included), analog signal conditioners with scaling and panel meters with a very bright and easy to read display. The KT line of controllers is well suited for a wide variety of machine and process control applications. Each controller offers a wide selection of inputs and outputs.

Common features for all KT series temperature controllers
- Multi-input: Versatile thermocouple, RTD, DC Current, DC Voltage
- Control modes: PID, on/off control, Anti-Reset-Windup (ARW)
- Control output: Relay, non-contact voltage output (for SSR drive, DC current output)
- Accuracy: ± 0.2% span
- Simple operation
- Heater-burn-out alarm available
- Alarm output with 9 different operation modes
- RS485 ASCII/Modbus communication available
- Supply voltage: 24V AC/DC or 100 to 240V AC
- Compliant with UL, CSA standards and CE marking

KT2 series features
-
1/32 DIN size temperature controller
- Size 48 x 24 x 98.5mm (WxHxD)
- 9-step pattern control (ramp function)
-
Panel-mounted type
- IP66 waterproof (front side if panel mounted)
- 2 set values possible (externally selectable)
-
2nd optional alarm output
- Heating and cooling control with 2nd optional control output (relay)
-
Analogue value converter function

KT4 series features
- 1/16 DIN size temperature controller
- Size 48 x 48 x 56mm (WxHxD)
-
Panel-mounted type
- IP66 waterproof (frontside if panel mounted)
-
2nd optional alarm output
- Heating and cooling control with 2nd optional control output (non-contact voltage output)
- 11-segment display with 3 colours for PV
- 4 set values (externally selectable)
-
Tool Port as standard
-
MEWTOCOL communication
-
Heater burnout alarm supports 3-phase heaters

KT7 series features
- Size 22.5 x 75 x 100mm (WxHxD)
-
Front screw terminals
- DIN rail mounting type
- Analogue value converter function

KT8 series features
-
1/8 DIN size temperature controller
- Size 48 x 96 x 98.5mm (WxHxD)
-
Panel-mounted type
- IP66 waterproof (front side if panel mounted)
-
2 set values possible (externally selectable)
-
2nd optional alarm output
- Heating and cooling control with 2nd optional control output (relay, non-contact voltage, or current)

KT9 series features
- 1/4 DIN size temperature controller
- Size 96 x 96 x 98.5mm (WxHxD)
-
Panel-mounted type
- IP66 waterproof (front side if panel mounted)
-
2 set values possible (externally selectable)
-
2nd optional alarm output
- Heating and cooling control with 2nd optional control output (relay, non-contact voltage, or current)


Read More......


Panasonic PLCs & Automation Components | Copyright 2009 Tüm Hakları Saklıdır | Blogger Template by GoogleBoy ve anakafa | Sponsored by Noow!
